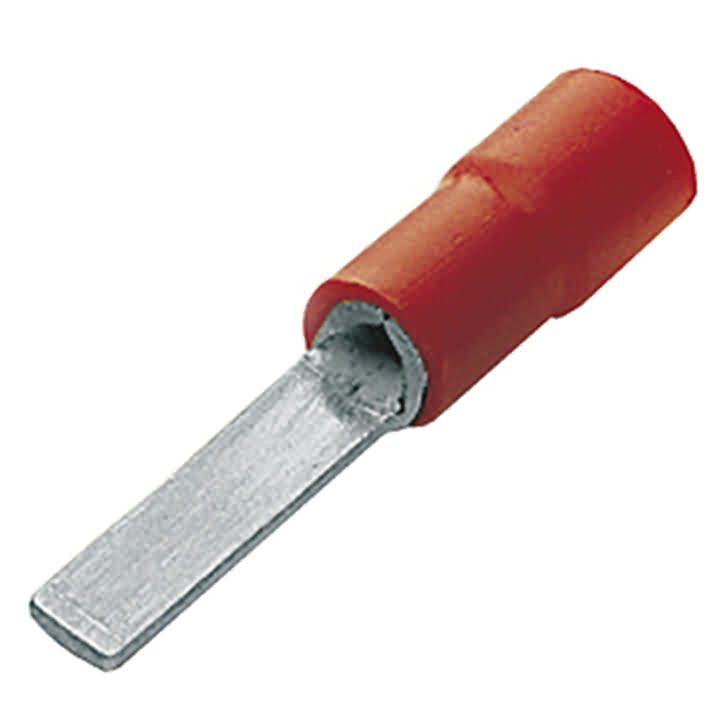

Pre-insulated Straight Blade-shape Terminals
25 pieces per bag
Description:
This type of pre-insulated blade shape connector can be inserted into a socket for power supply. For solid connection, hobbyists should get the wire stripped first and soldered on the end of the blade before crimping the sleeve.
Features:
* Metal contact material: tin-plated brass
* Insulation material: PVC
* Cable size: AWG 22~10
* Max. voltage rating: 300V
* Max. current rating: 10A
| Product | B (mm) | E (mm) | F (mm) | A.W.G | DIN/mm² | WIDTH B (mm) | DIMENSIONS L (mm) | COLOR | PACKING (pcs/bag) | Φ d1 | |
| ITEM No. | |||||||||||
| BV-1.25-10-YR | 2.2 | 11.5 | 10.5 | 22-18 | 0.5-1.0 | 2.2 | 10.5 | Red | 100 | 4 | |
| BV-1.25-18-YR | 2.2 | 11.5 | 18 | 22-18 | 0.5-1.0 | 2.2 | 18 | Red | 100 | 4 | |
| BV-2-10-YL | 2.2 | 11.5 | 10.5 | 16-14 | 1.5-2.5 | 2.2 | 10.5 | Blue | 100 | 4.5 | |
| BV-2-18-YL | 2.2 | 11.5 | 18 | 16-14 | 1.5-2.5 | 2.2 | 18 | Blue | 100 | 4.5 | |
| BV-5-10-YY | 2.8 | 15.5 | 10.5 | 12-10 | 4.0-6.0 | 2.8 | 10.5 | Yellow | 100 | 6.5 | |
| BV-5-18-YY | 3 | 15.5 | 18 | 12-10 | 4.0-6.0 | 3 | 18 | Yellow | 100 | 6.5 | |
| BV-1.25-14-YR | 2.9 | 11.5 | 14 | 22-18 | 0.5-1.0 | 2.2 | 14 | Red | 100 | 4 | |
| BV-2-13-YL | 2.2 | 11.5 | 13 | 16-14 | 1.5-2.5 | 2.2 | 13 | Blue | 100 | 4.5 | |
