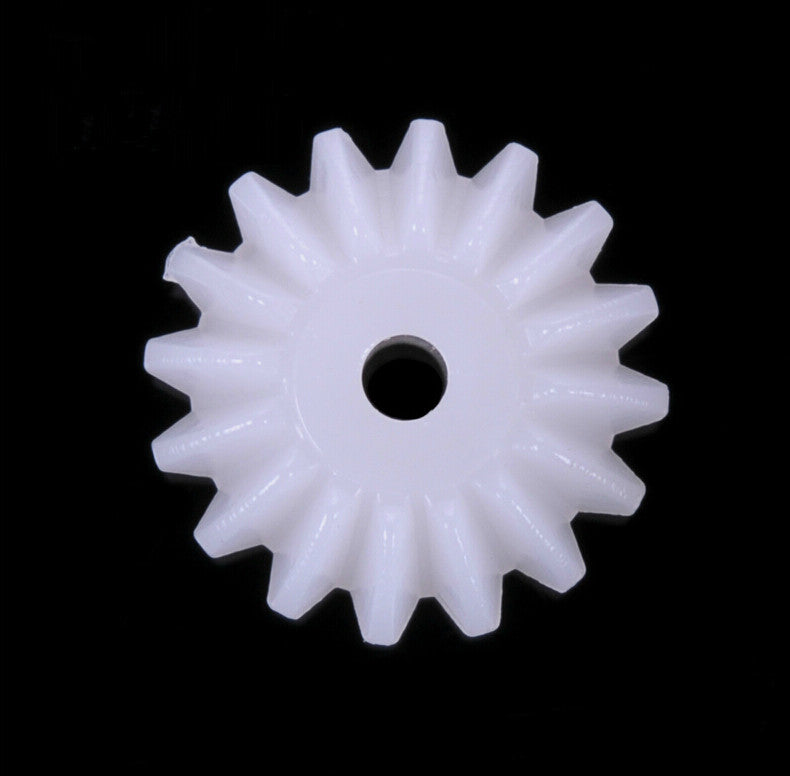

Plastic Straight Bevel Gear
Overview:
A bevel gear is shaped like a right circular cone with most of its tip cut off. When two bevel gears mesh, their imaginary vertices must occupy the same point. Their shaft axes also intersect at this point, forming an arbitrary non-straight angle between the shafts. The angle between the shafts can be anything except zero or 180 degrees. Bevel gears with equal numbers of teeth and shaft axes at 90 degrees are called mitre gears.
Specs:
Material: UPE
Module: 0.5
Teeth: 12 & 16
Teeth Height: 5.3mm
Total Height: 10mm
Bore Dia.: 1.95mm (fitting shaft of 2.0mm in diameter)
Gear Diameter: 11.4mm
Bottom Diameter: 6mm
***90 degree meshing in pair:
