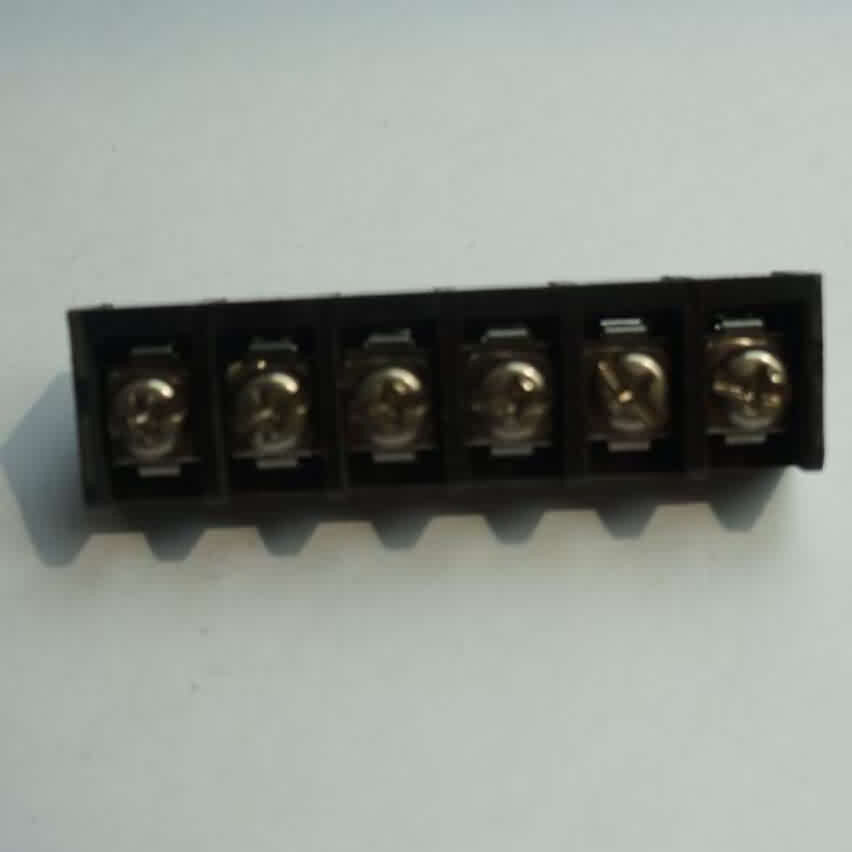

Single Row Dual Barrier Strips without Mounting Holes / Straight Pins /Pitch: 6.35mm
Description:
Description:
PC board mounted blocks are designed for power applications and incorporate a flip-open clear safety cover. Barriers contain stray or frayed wire ends to prevent electrical shorts between positions on the same block as well as adjacent components.
Specifications:
Specifications:
* Pitch: 6.35mm(0.25")
* Poles: 2P~28P(available)
* Voltage rating: 250V
* Current rating: 15A
* Solid wire(AWG): 14-22
* Torque: 10kgf.cm/M3.5
* Operating temperature: -40℃to+105℃
* Withstanding voltage: 2500VAC
Applications:
* Machine controls
* Power Supplies
* Test and Measurement
* Automation Equipment
* Security/alarm devices
* HVAC controls
* Garage Door Openers
* Furnaces, Water Heaters, Boilers.
