Arduino ATmega1280-16AU USB board + USB cable
Description:

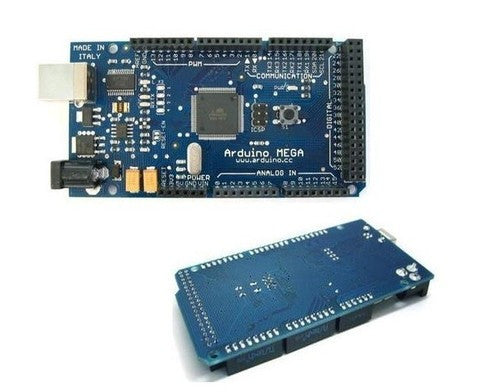

The Mega is a microcontroller board based on the ATmega1280. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4UARTs(hardware serial ports), a 16MHzcrystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
The Mega is compatible with most shields designed for the Duemilanove or Diecimila.
Specifications:
|
Operating Voltage |
5V |
|
Input Voltage (recommended) |
7-12V |
|
Input Voltage (limits) |
6-20V |
|
Digital I/O Pins |
54 (of which 14 provide PWM out) |
|
Analog Input Pins |
16 |
|
DC Current per I/O Pin |
40 mA |
|
DC Current for 3.3V Pin |
50 mA |
|
Flash Memory |
128 KB of which 4 KB used by bootloader SRAM 8 KB |
|
EEPROM |
4 KB |
|
Clock Speed |
16 MHz |
Remark: The Arduino MEGA with ATmega 1280 has been replaced with a newer version, Arduino Mega 2560.
