Plastic Crown Gears - Module 0.5
Overview:
A crown gear (or a contrate gear) is a gear which has teeth that project at right angles to the face of the wheel. In particular, a crown gear is a type of bevel gear where the pitch cone angle is 90 degrees. A pitch cone of any other angle is simply called a bevel gear. Crown gears normally mesh with other bevel gears, or sometimes spur gears.
Specs:
Module: 0.5
Material: Nylon
| Model | Teeth | d | D1 | D2 | D3 | H1 | H2 | H3 | L | H |

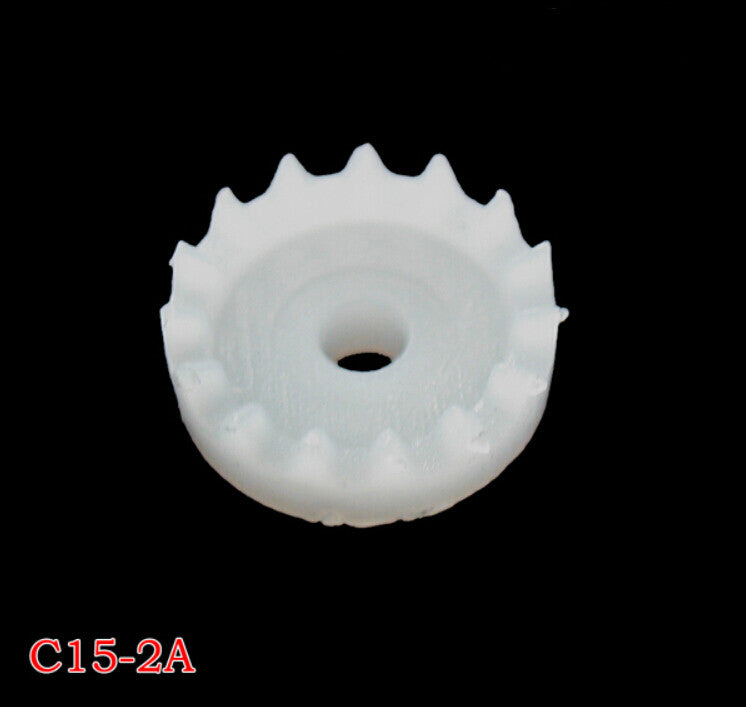

| C15-2A | 15 | 1.95 | 8.5 | 4.9 | - | 3 | 1 | - | 1 | 1.7 |
| C20-2A | 20 | 1.95 | 11.1 | 4.8 | - | 2.1 | 2.2 | - | 1.2 | 1.4 |
| C20-2.5A | 20 | 2.45 | 10.7 | 4.6 | 4.5 | 3.1 | 0.5 | 2.6 | 1.5 | 2 |
| C24-10-2B | 24+10 | 2.05 | 12.8 | 6 | - | 2.9 | 4 | - | 1 | 1.9 |
| C28-2A | 28 | 1.95 | 15.2 | 4.9 | - | 2.4 | 2.2 | - | 1 | 1.4 |
| C28-10-2B | 28+10 | 2.05 | 14.7 | 6 | - | 2.4 | 4.2 | - | 1 | 1.4 |

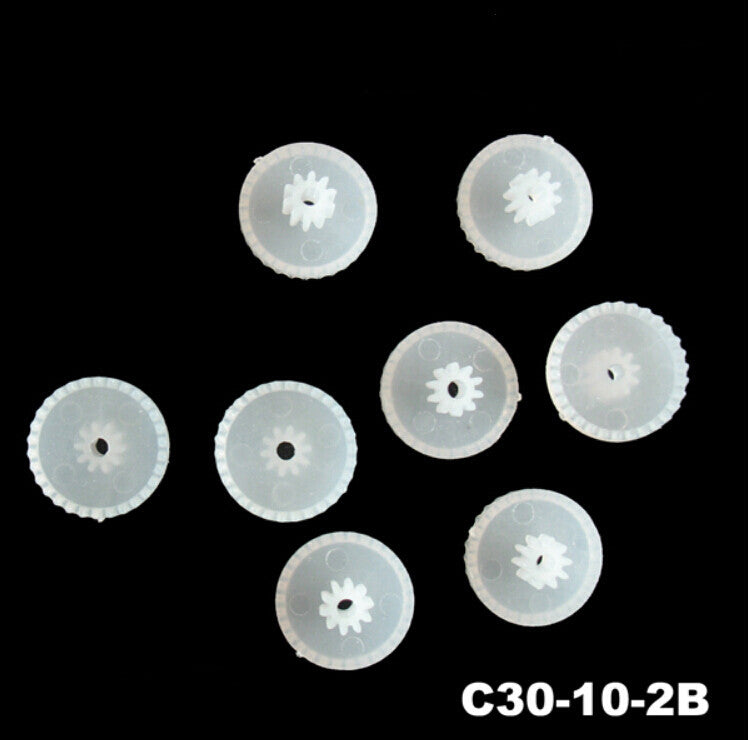

| C30-10-2B | 30+10 | 2.05 | 15.6 | 6 | - | 2.9 | 4.2 | - | 1 | 1.6 |
| C36-08-2BF | 36+8 | 2.05 | 18.7 | 5 | 4.5 | 2.6 | 0.6 | 5.5 | 1.3 | 1.8 |
| C40-10-2B | 40+10 | 2.05 | 20.7 | 6 | - | 3.2 | 4 | - | 1.1 | 2 |
Unit: mm
