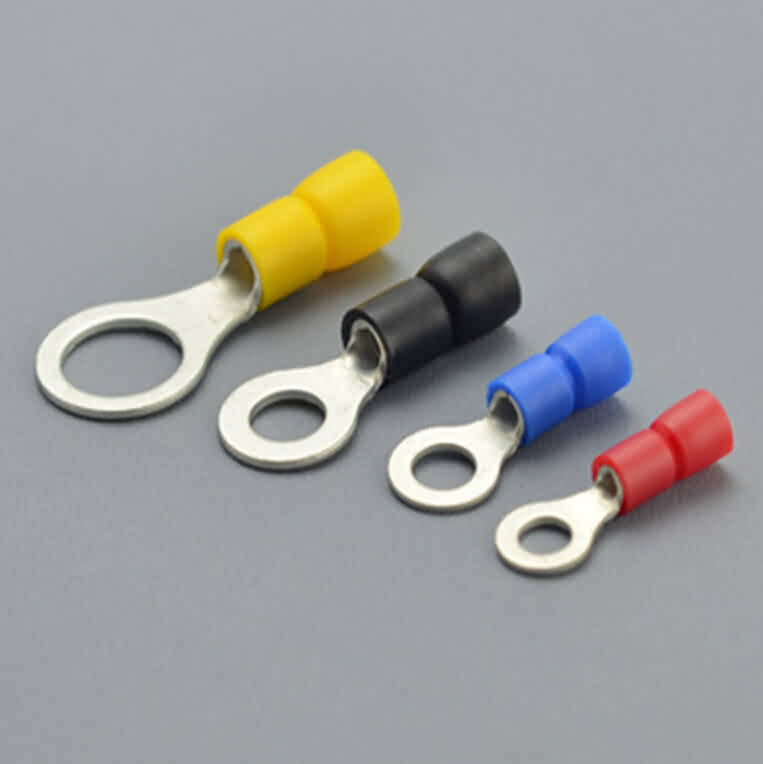

Circular Pre-insulated Terminal Lug / Max current: 37A
Packing: 50 pieces per bag
Description:
This type of pre-insulated terminal lug is used to snap on a bolt for power supply connection and supports the wire range of AWG 14 to 12. The connecting material is made of tin-plated brass with maximum current resistance of 37 amp.
Features:
* Contact material: tin-plated brass
* Metal thickness: 0.8mm
* Maximum current resistance: 37A
* Insulating material: PVC
* Insulating material color: black
* Working temperature: -40 to +105°C
* Wire range: awg14~12(2.5-4mm²)
| Model: | Number of ANSI bolt | Diameter of bolt d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV3.5-4 | #8 | 4.3mm | 8 | 24.5 | 7.7 | 13 | 6.2 | Black |
| RV3.5-5A | #10 | 5.3mm | 8 | 24.5 | 7.7 | |||
| RV3.5-5B | #10 | 5.3mm | 12 | 27.9 | 7.7 | |||
| RV3.5-6 | 1/4 | 6.4mm | 12 | 27.9 | 7.7 |
