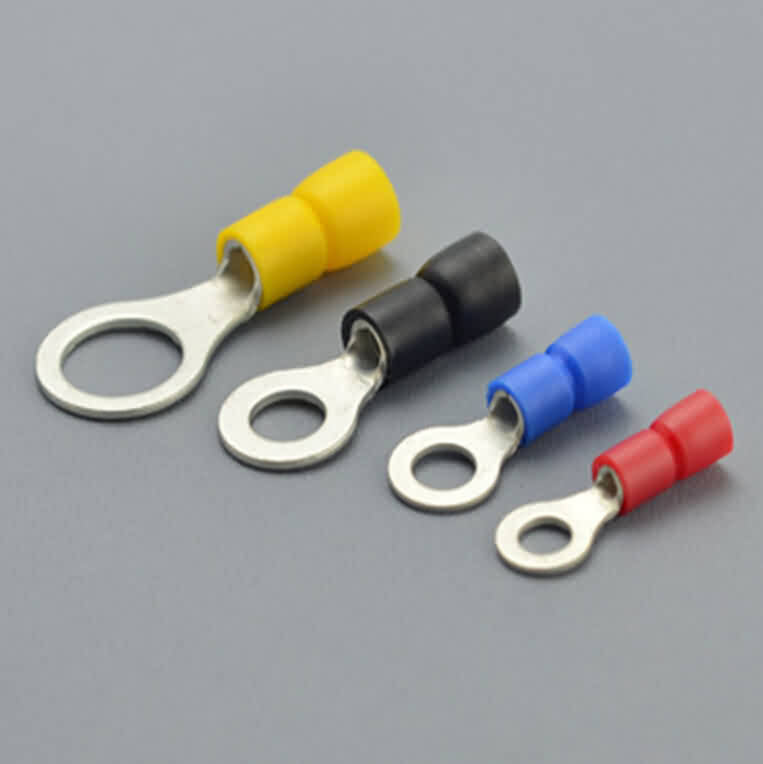

Circular Pre-insulated Terminal Lug / Max. current: 27A
50 pieces per bag
Description:
This type of pre-insulated terminal lug is used to snap on a bolt for power supply connection and supports the wire range of AWG 16 to 14. The connecting material is made of tin-plated brass with maximum current resistance of 27 amp.
Features:
* Contact material: tin-plated brass
* Metal thickness: 0.8mm
* Maximum current resistance: 27A
* Insulating material: PVC
* Insulating material color: blue
* Working temperature: -40 to +105°C
* Wire range: awg16~14(1.5-2.5mm²)
| Model: | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV2-3 | #4 | 3.2mm | 6.6 | 17.8 | 4.3 | 10 | 4.9 | Blue |
| RV2-3.5A | #6 | 3.7mm | 6.6 | 17.8 | 4.3 | |||
| RV2-3.5B | #6 | 3.7mm | 6.6 | 20.1 | 7 | |||
| RV2-3.5C | #6 | 3.7mm | 8.5 | 22.5 | 7.75 | |||
| RV2-4A | #8 | 4.3mm | 6.6 | 21 | 7 | |||
| RV2-4B | #8 | 4.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-5A | #10 | 5.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-5B | #10 | 5.3mm | 9.5 | 22.5 | 7.25 | |||
| RV2-6 | 1/4 | 6.4mm | 12 | 27.6 | 11 | |||
| RV2-8 | 5/16 | 8.1mm | 12 | 27.6 | 11 | |||
| RV2-10 | 3/8 | 10.5mm | 13.6 | 30.2 | 13.9 | |||
| RV2-12 | 1/2 | 13mm | 19.2 | 36.5 | 16.5 |
