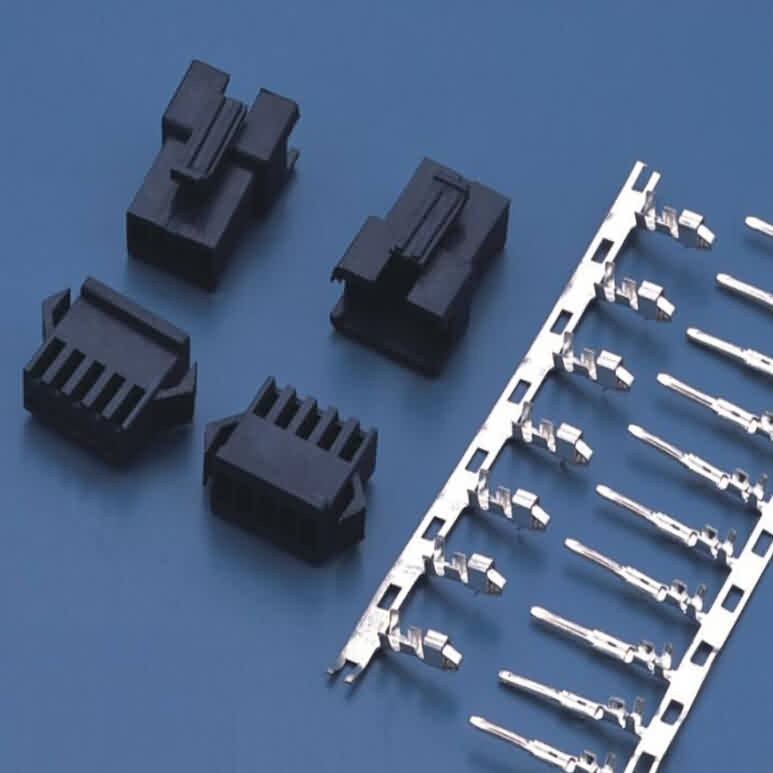

2.5mm JST SM male and female connectors
Description:
These crimp style JST-SM connectors are 2.5mm pitch with locking function and disconnectable They perform reliably in high-density, small current applications. They are commonly used in RGB LED decorative light strips by hobbyists.
They are black in color and come in a male-female pair with terminals.
Specifications:
• Current rating: 3A AC, DC max.
• Voltage rating: 250V AC, DC max.
• Temperature range: -25 ̊C to +85 ̊C(including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10mΩ max.
After environmental testing/ 20mΩ max.
• Insulation resistance: 500MΩ min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: AWG #28 to #22 0.08 to 0.33mm2
• Applicable panel thickness: 0.5 to 2.0mm
