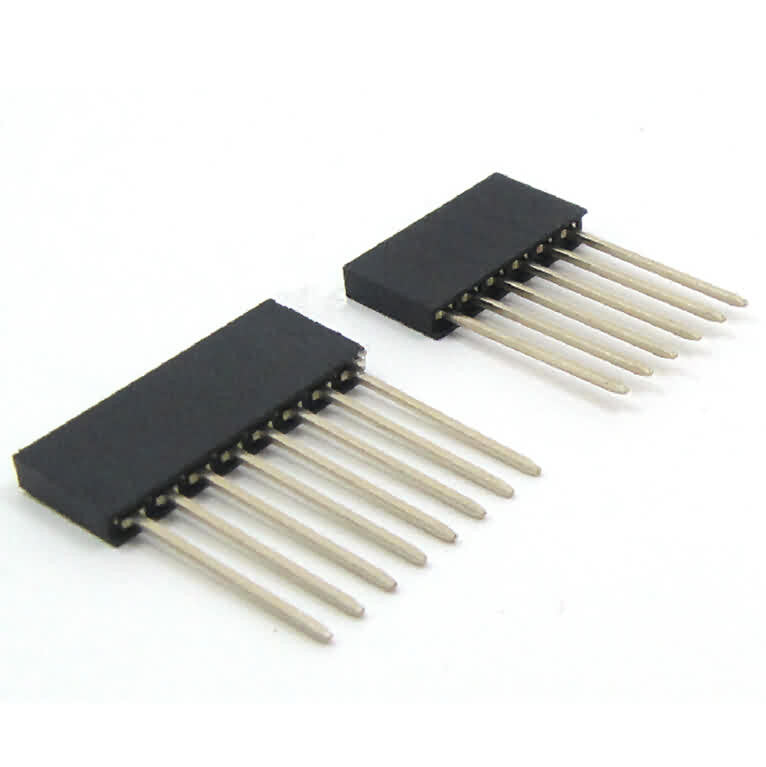

2.54mm Female Header Strip - Single Row/Straight/Pin: 4~40/Pin Length: 11mm
Description:
This straight stackable 0.1 inch (2.54mm) female header with extra long pins is designed to work with Arduino shields and is compatible with Arduinos that have the standard Arduino pin spacing, such as the Arduino Uno R3 and Arduino Leonardo, and a subset of the Arduino Mega 2560 R3 pins.
*** These pin headers are gold-plated with very great conductivity. Hobbyists love to use them
Features:
* Pitch: 0.1"(2.54mm)
* Insulator: PBT15%GF,UL94V-0
* Contact: gold-plated brass
* Color: Black
Specifications:
* Current rating: 3A AC/DC
* Voltage rating: 250V AC,DC
* Temperature range: -40°C~+105°C
* Contact resistance: 20mΩ Max.
* Insulation resistance: 1000MΩ Min.
* Withstanding voltage: 1500V AC/minute
* Compliant with RoHS
