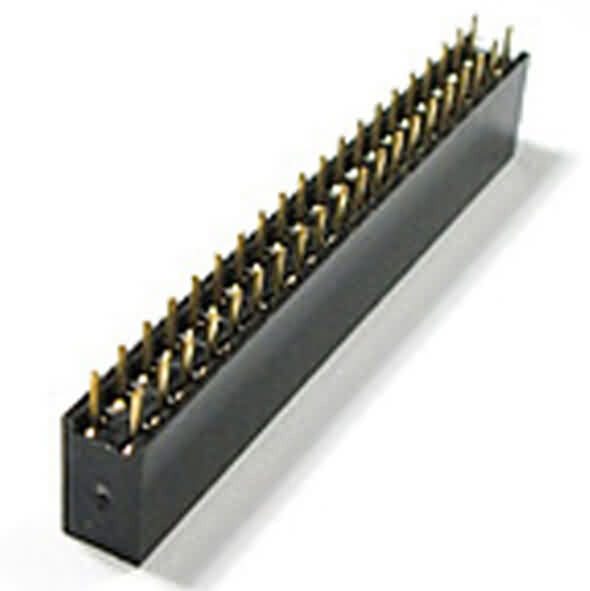

2.54mm Female Header Strip - Double Row/Straight/Pin: 2*2~40
These are high quality gold-plated straight female header strips designed to match the 0.1 inch (2.54mm) male headers we supply.They are RoHs approved authentic with great conductivity. These connectors are very commonly used by hobbyists for custom-made cables or perforated prototyping PCBs.
Features:
* Pitch: 0.1"(2.54mm)
* Insulator: PBT15%GF,UL94V-0
* Contact: gold-plated brass
* Color: Black
Specifications:
* Current rating: 3A AC/DC
* Voltage rating: 250V AC,DC
* Temperature range: -40°C~+105°C
* Contact resistance: 20mΩ Max.
* Insulation resistance: 1000MΩ Min.
* Withstanding voltage: 1500V AC/minute
*** These pin headers are gold-plated with very great conductivity. Hobbyists love to use them
Description:These are high quality gold-plated straight female header strips designed to match the 0.1 inch (2.54mm) male headers we supply.They are RoHs approved authentic with great conductivity. These connectors are very commonly used by hobbyists for custom-made cables or perforated prototyping PCBs.
Features:
* Pitch: 0.1"(2.54mm)
* Insulator: PBT15%GF,UL94V-0
* Contact: gold-plated brass
* Color: Black
Specifications:
* Current rating: 3A AC/DC
* Voltage rating: 250V AC,DC
* Temperature range: -40°C~+105°C
* Contact resistance: 20mΩ Max.
* Insulation resistance: 1000MΩ Min.
* Withstanding voltage: 1500V AC/minute
* Compliant with RoHS
| Pin Count | A | B | Pin Count | A | B |
| 2*2 | 2.54 | 5.58 | 2*10 | 22.86 | 25.9 |
| 2*3 | 5.08 | 8.12 | 2*11 | 25.40 | 28.4 |
| 2*4 | 7.62 | 10.66 | 2*12 | 27.94 | 31.0 |
| 2*5 | 10.16 | 13.20 | 2*14 | 33.02 | 36.1 |
| 2*6 | 12.70 | 15.74 | 2*16 | 38.10 | 41.1 |
| 2*7 | 15.24 | 18.28 | 2*17 | 40.64 | 43.7 |
| 2*8 | 17.78 | 20.82 | 2*20 | 48.26 | 51.3 |
| 2*9 | 20.32 | 23.36 | 2*40 | 99.06 | 102.2 |
